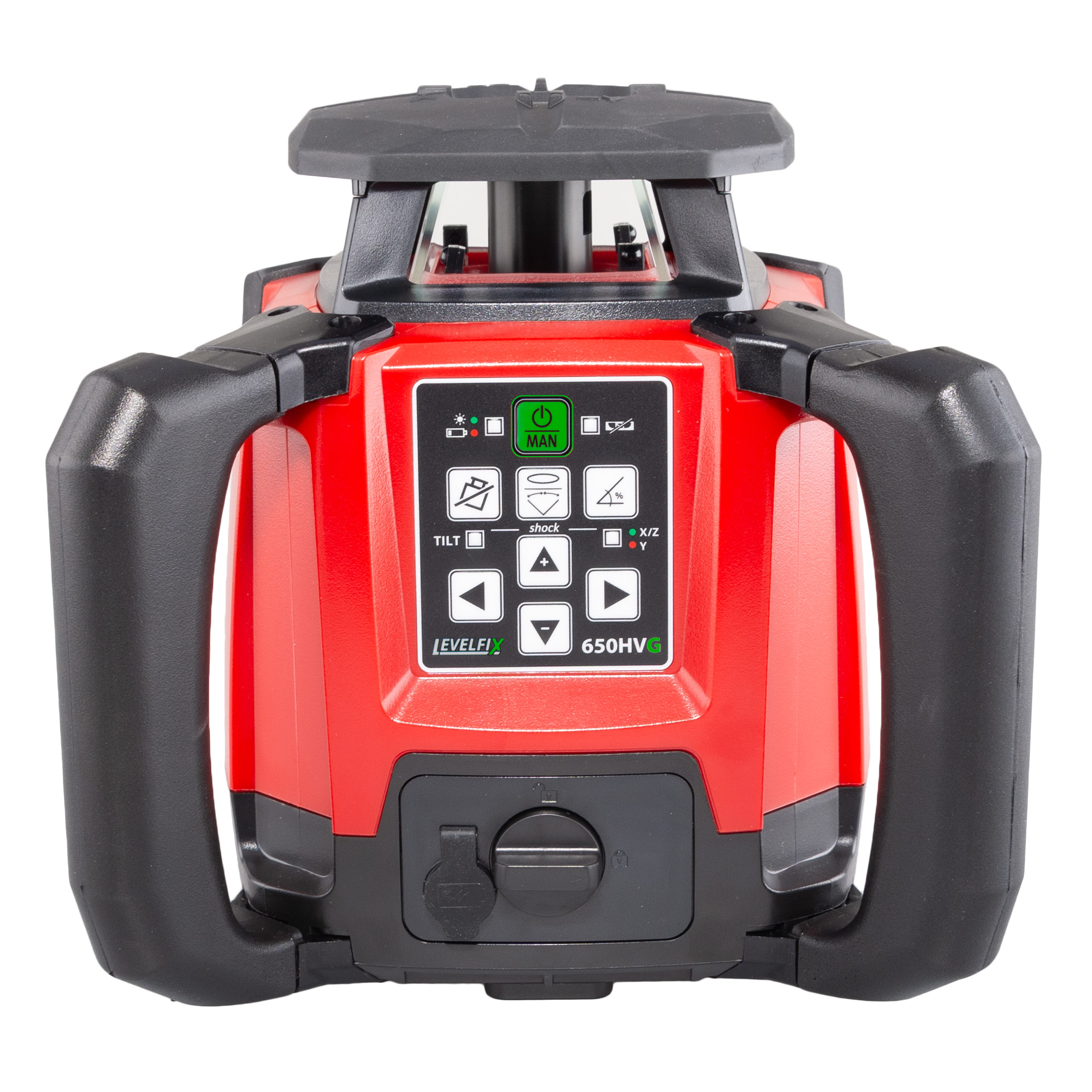

LEVELFIX 650HVG GREEN MULTIFUNCTIONAL HORIZONTAL VERTICAL CONSTRUCTION LASER

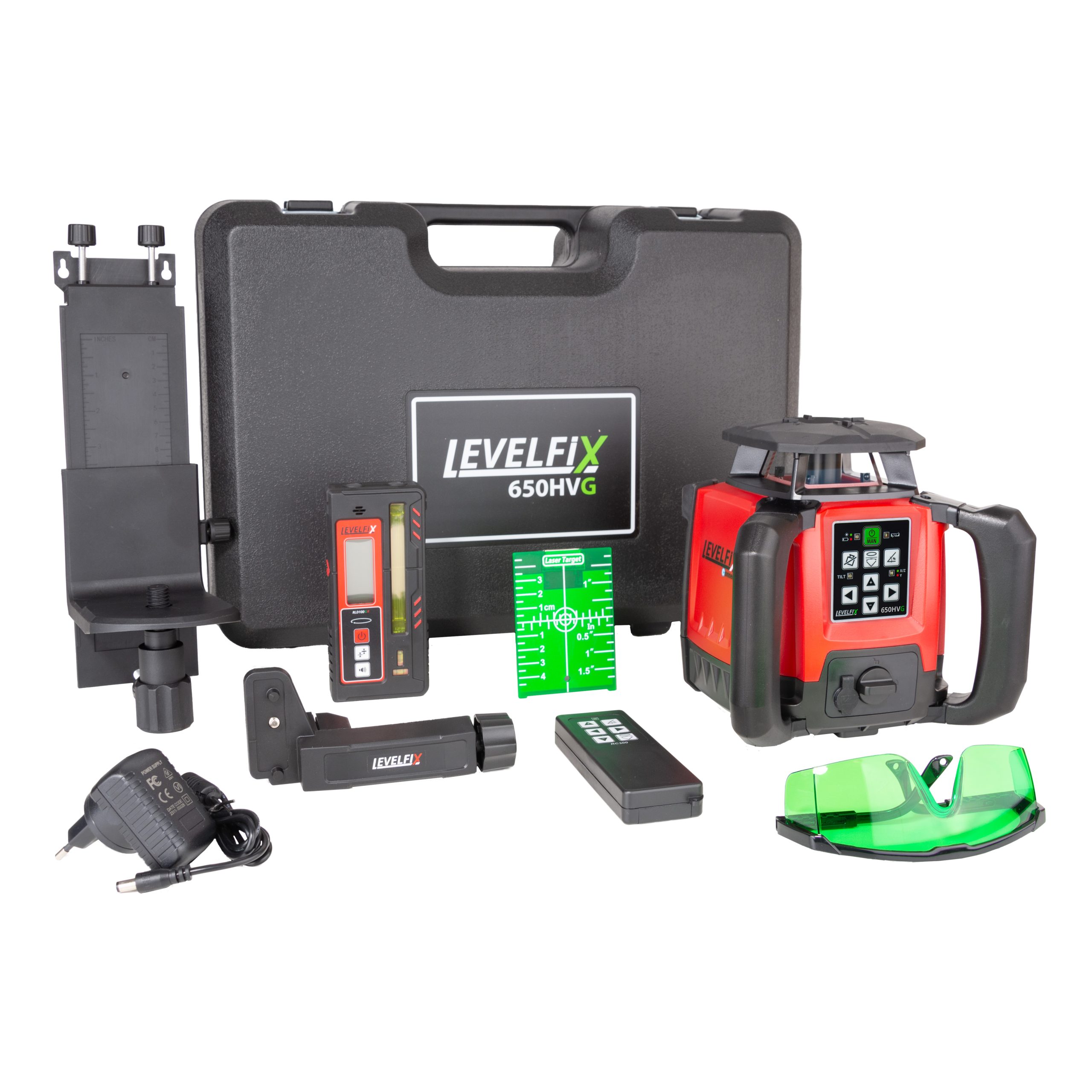

The 650HVG is a fully automatic, all-round construction laser with a green beam. The laser can be positioned horizontally and vertically. In addition, the laser has everything you need for your work, such as: TILT function, manual slope, plumb beam, adjustable rotation speed, IP66 protection, and high accuracy. The 650HVG comes complete with remote control and detector.
4 years
warranty
4.8mm / 100m
accuracy
600m
working range
IP 66
construction
- 600 meter working range
- Accuracy 4.8mm/100mtr.
- Working time 40 hours on 1 charge
- IP 66 construction (waterproof)
- Manual slope and TILT function
- Renewed Li-ion battery
Specifications
| SKU | 554630 |
|---|---|
| EAN | 8712423017689 |
| Slope | Manually adjustable |
| Slope Range | 0 to 10% |
| Operating time | 45 hours |
| Range | 600m |
| Housing | IP 66 |
| Functions | Rotate 0/150/300/600 rpm, scan line and point |
| Warranty | 4 years |
| Laser class | 525 nm / class 2m (green) |
| Accuracy | 4.8mm / 100m |
| Rechargeable | Yes |
| Power supply | Li-ion battery (replaceable) |
Product Description
The all-round laser for indoor and outdoor use with a green beam
Whether it concerns placing walls and ceilings, setting out an extension, setting out a foundation, making right angles, or setting out and checking heights, the LEVELFIX 650HVG can do it all. The laser is easy to operate and designed for everyday ease of use.
The All-In-One Construction Laser

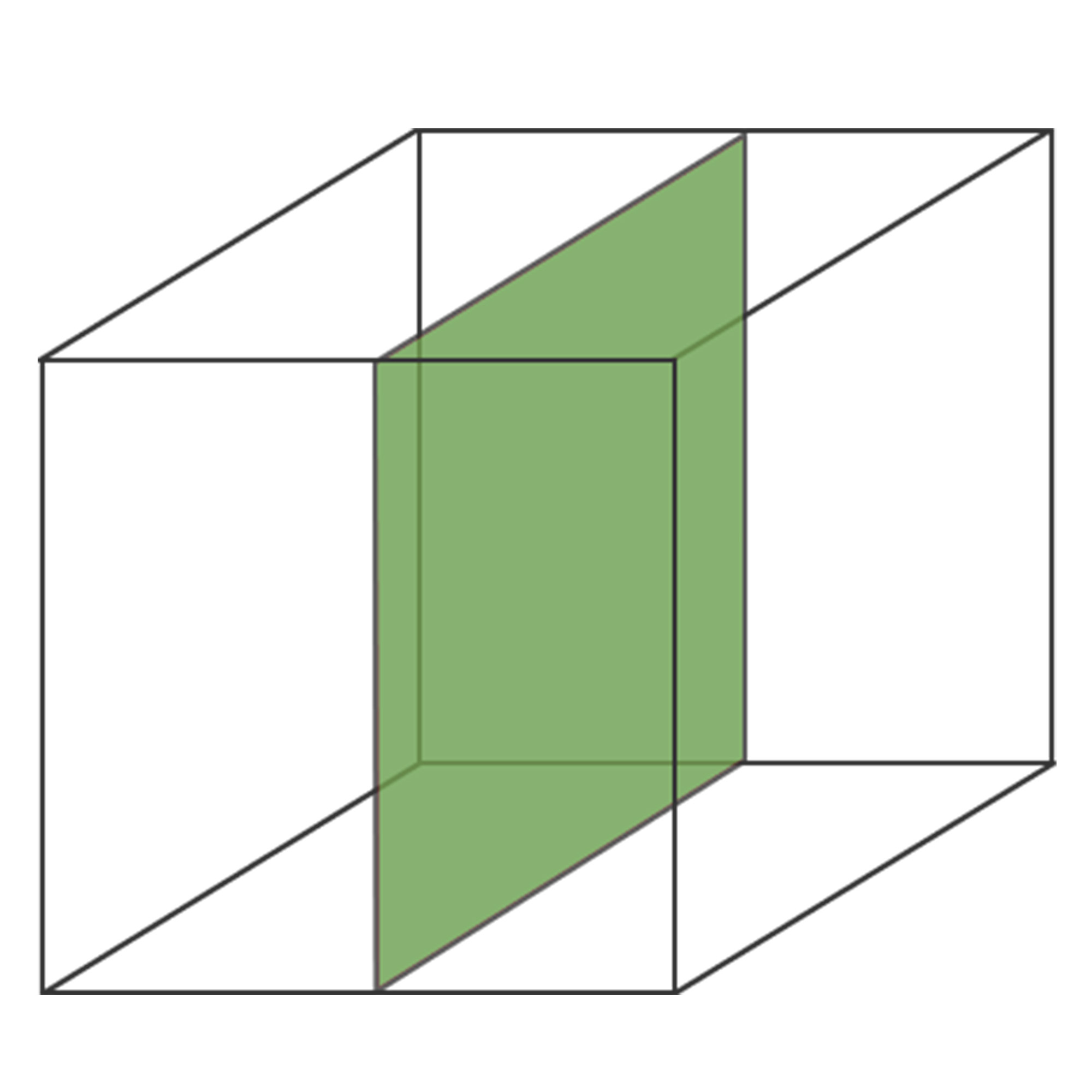

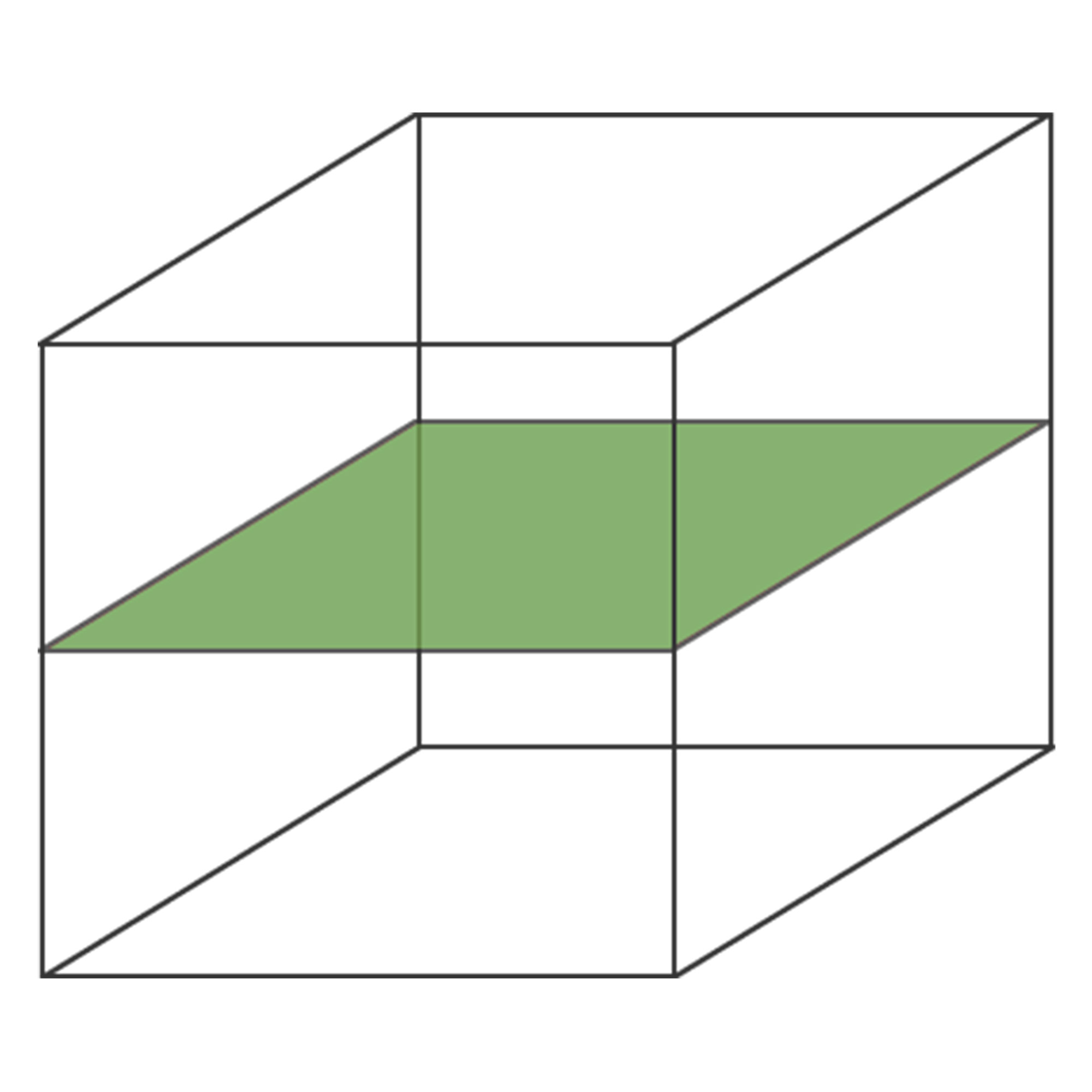

The LEVELFIX 650HVG contains all the functions needed for all work in interior and finishing. The laser can be positioned horizontally and vertically. With the included remote control, right angles and vertical lines can be easily set out vertically.
Full control
With the Tilt function, you always work with the correct measurement. When the Tilt function is enabled, the laser will continuously monitor the height. If the height changes due to heavy shocks or unwanted displacement of the laser, the laser will block to prevent measurement errors.

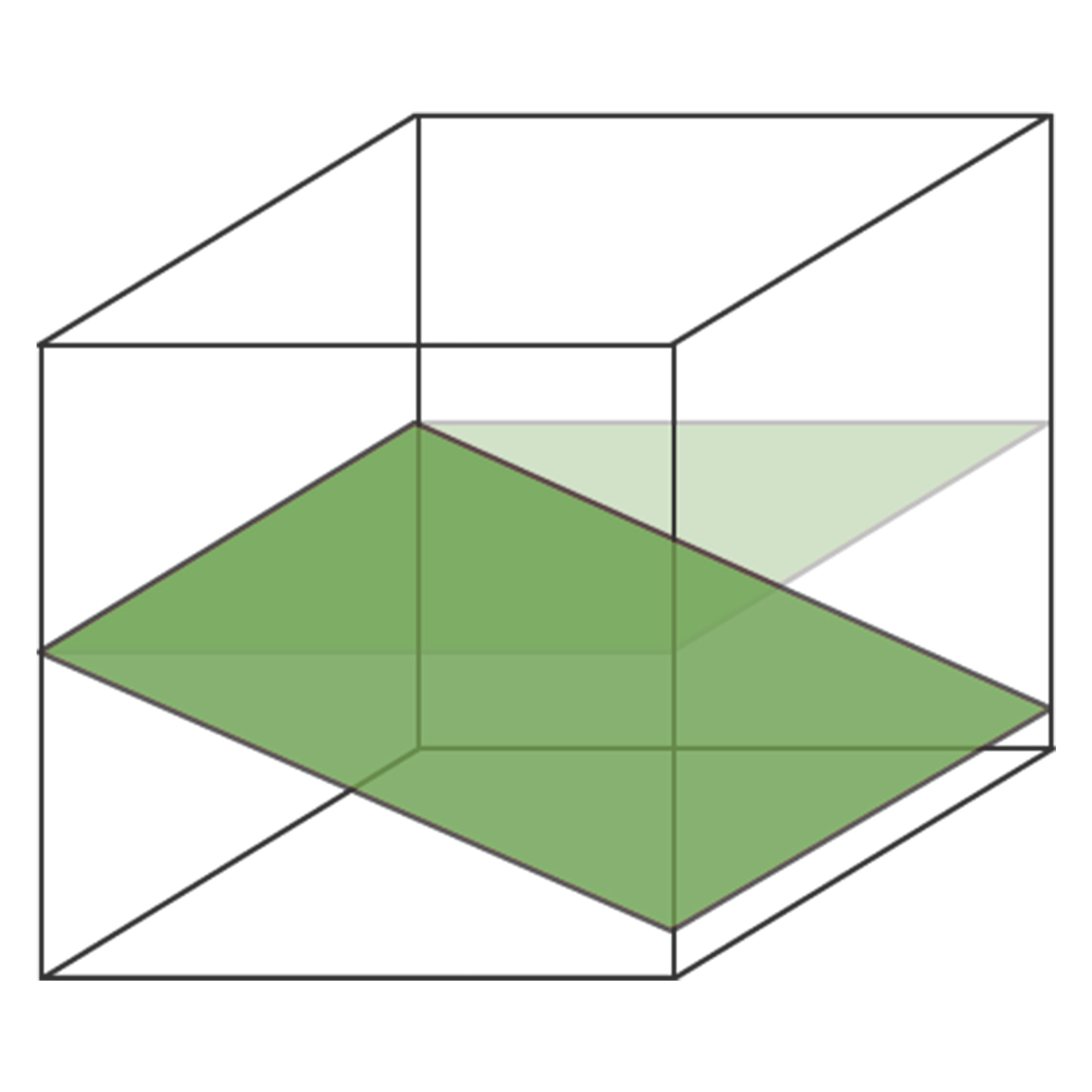

The manual slope function allows you to quickly and easily set a slope with the remote control on both the x- or y-axis.

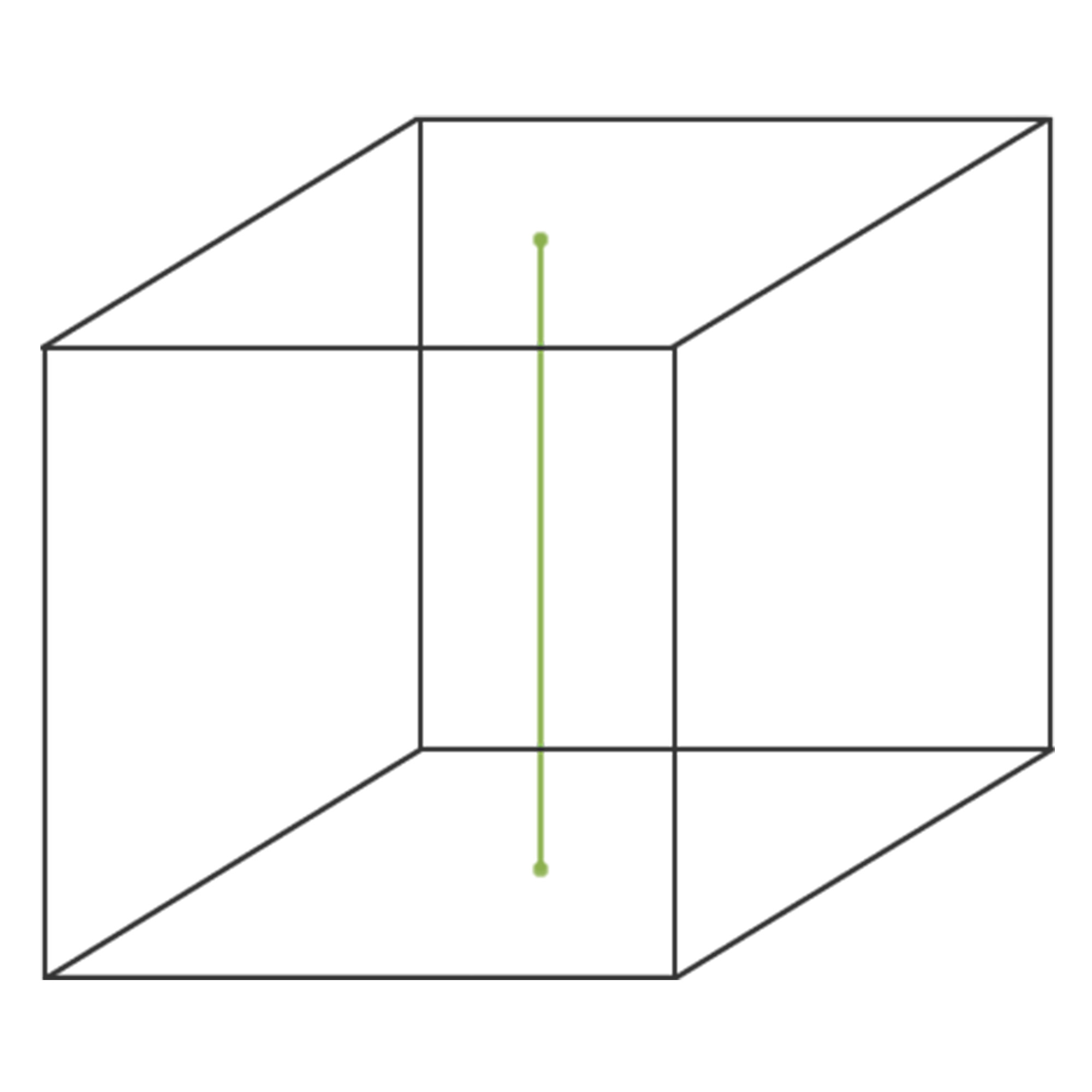

Furthermore, the laser has a plumb beam, adjustable rotation speed, and an adjustable scan line function. With this last function, you can project the laser line onto a specific surface, making it more visible and preventing disturbance in the surrounding area.
Powerful green
Thanks to the green POWER+ diode, the laser beam is up to 4x more visible to the human eye than traditional red construction lasers. This allows for working over long distances without a receiver. Ideal for tasks such as suspending ceilings and setting out walls.
Excellent Specifications
The 650HVG has an IP66 construction, protecting the laser against dust and moisture. The laser has an accuracy of 4.8mm/100 meters and is equipped with a renewed removable Li-ion battery pack.
The large working range of 600 meters (with detector) and the long operating time of 45 hours make the laser suitable for the demanding user.

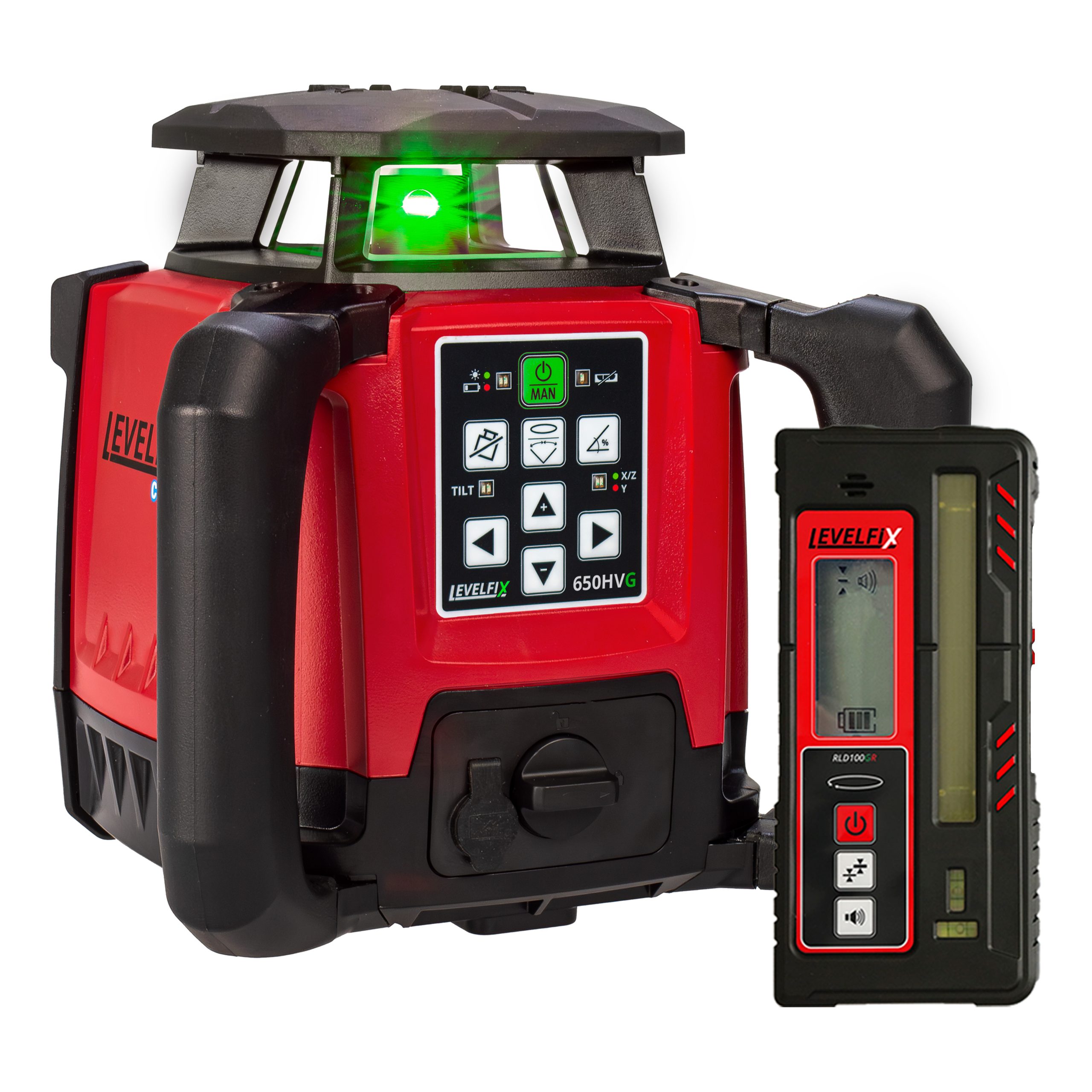

Complete with Robust Detector
The LEVELFIX 650HVG comes complete with the robust RLD100GR detector.
The RLD100GR has a large reception window, a illuminated and clear display and is designed for everyday ease of use. The detector has a robust, impact-resistant housing and is waterproof (IP66).
4-Year Warranty
Our warranty emphasizes the quality and reliability of our products. LEVELFIX lasers come with a 4-year factory warranty*. If an instrument becomes defective due to production or material faults, we will repair or replace it at no cost.
* After registering via internet within 2 weeks of purchase.
