LEVELFIX 870H SET INCL TRIPOD 1.8M AND LASER GRADE ROD

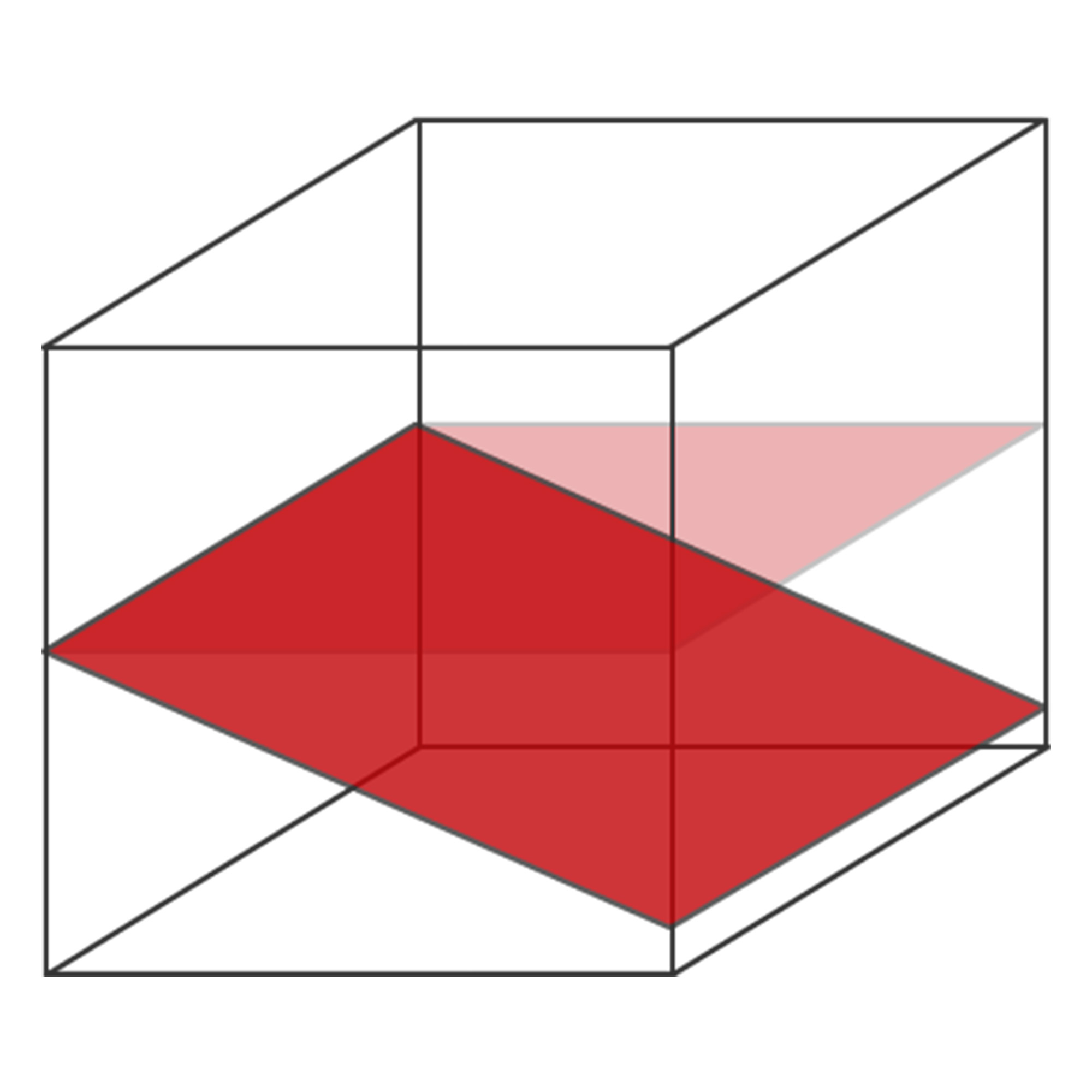

Horizontal red construction laser with an 800-meter range, high accuracy, IP67 protection, and long operating time.
The laser features manual slope and a TILT function, and comes with a 7-year construction warranty.

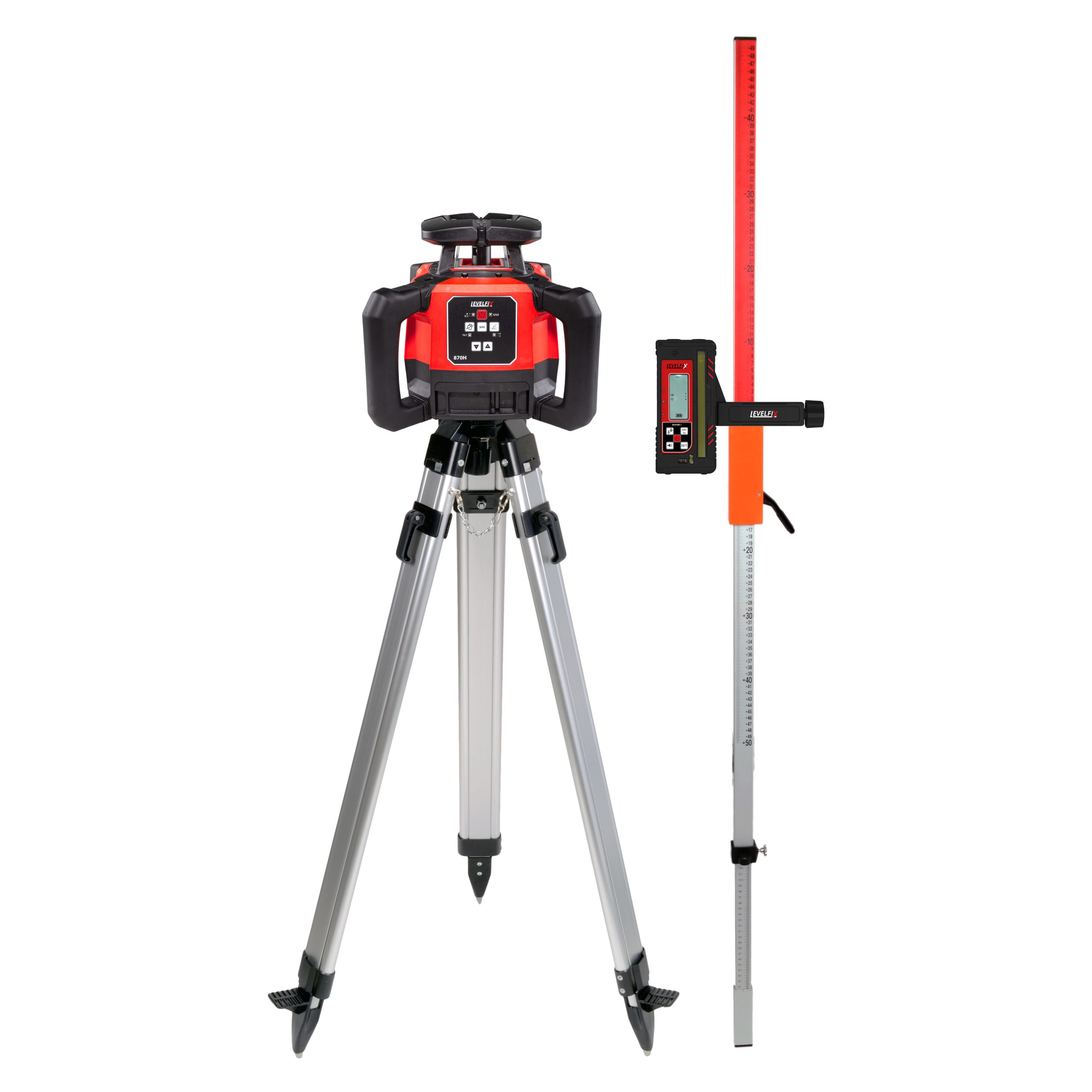

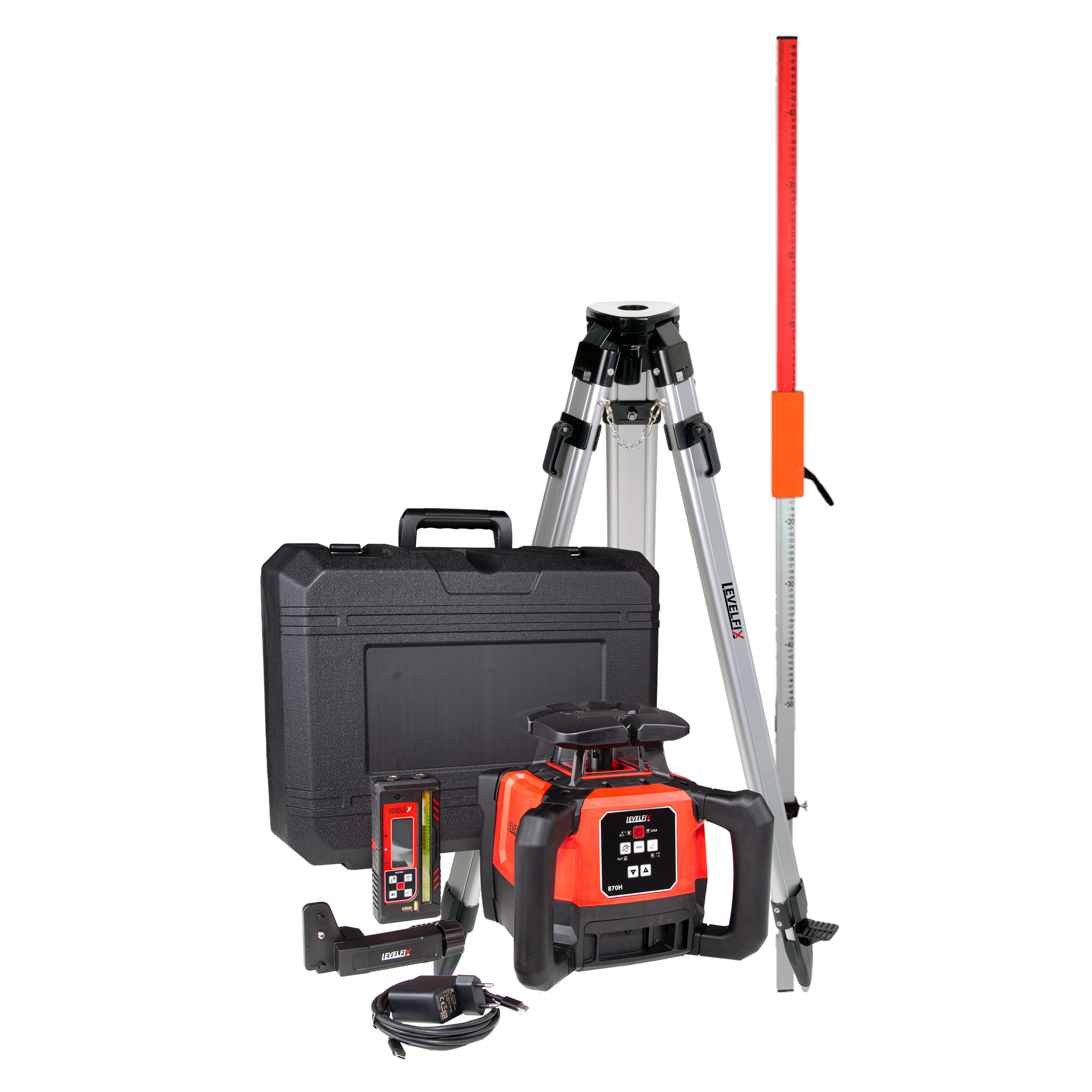

This set includes a digital mm-receiver, 1.8m tripod, and grade rod.

warranty

4.8mm / 100m

accuracy

800m

working range

IP 67

construction

800 meters working range
Accuracy 4.8mm/100mtr.
Operating time 55 hours on 1 charge
IP 67 construction (waterproof)
Equipped with manual slope and TILT function
7 years construct warranty
Complete set with 1.8m tripod and measuring staff

Specifications

SKU	554871
EAN	8712423020313
Range	800m
Housing	IP 67
Accuracy	4.8mm / 100m

Product Description

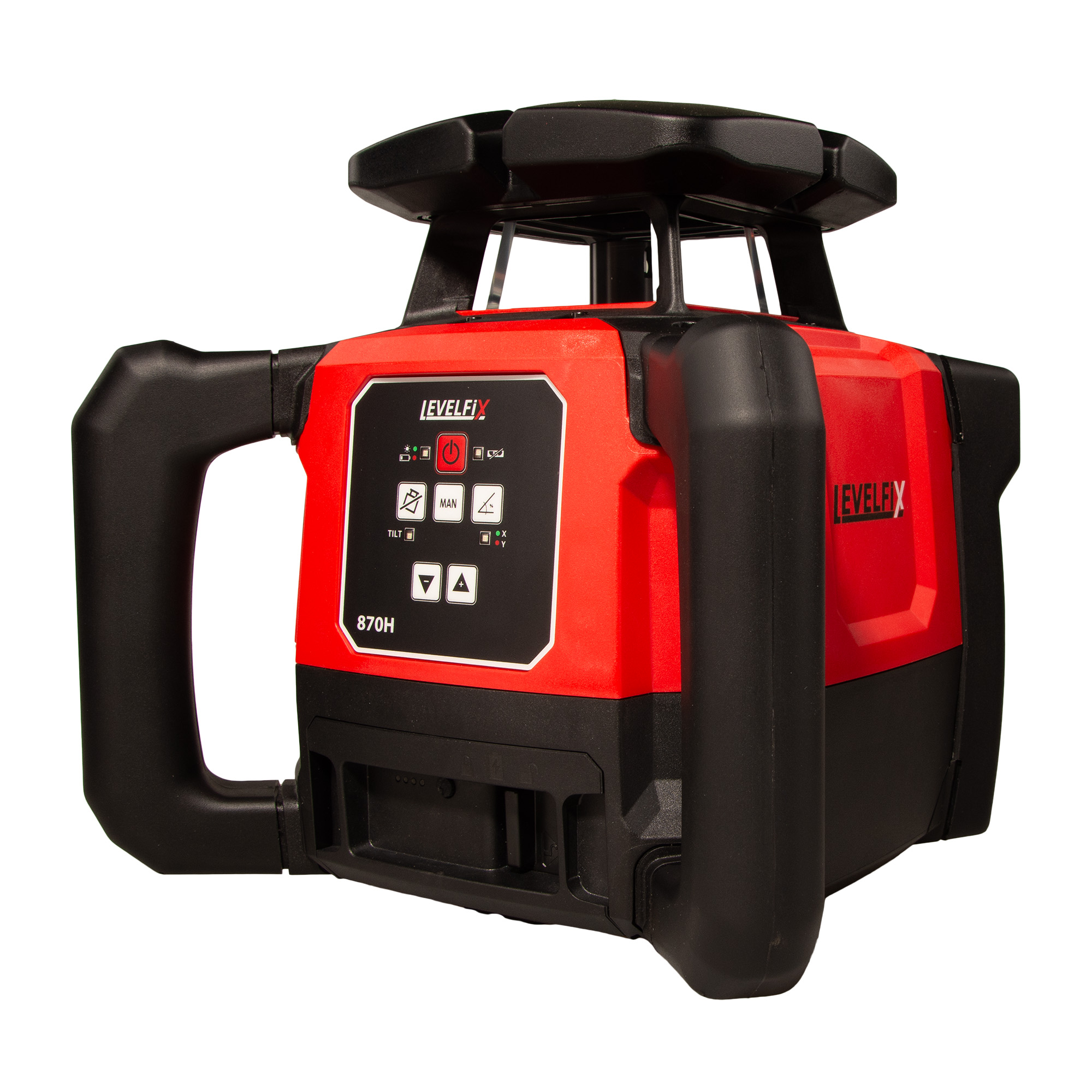

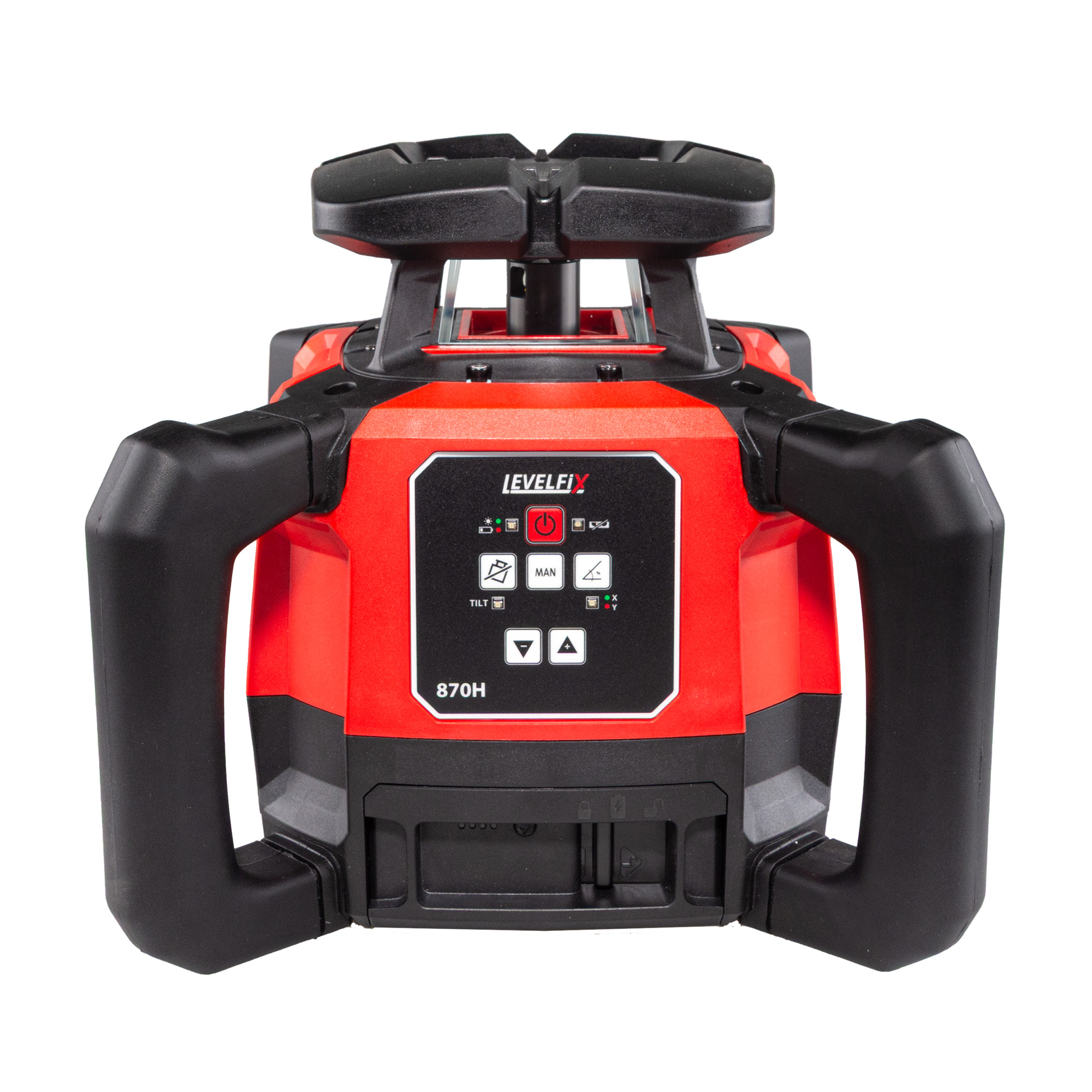

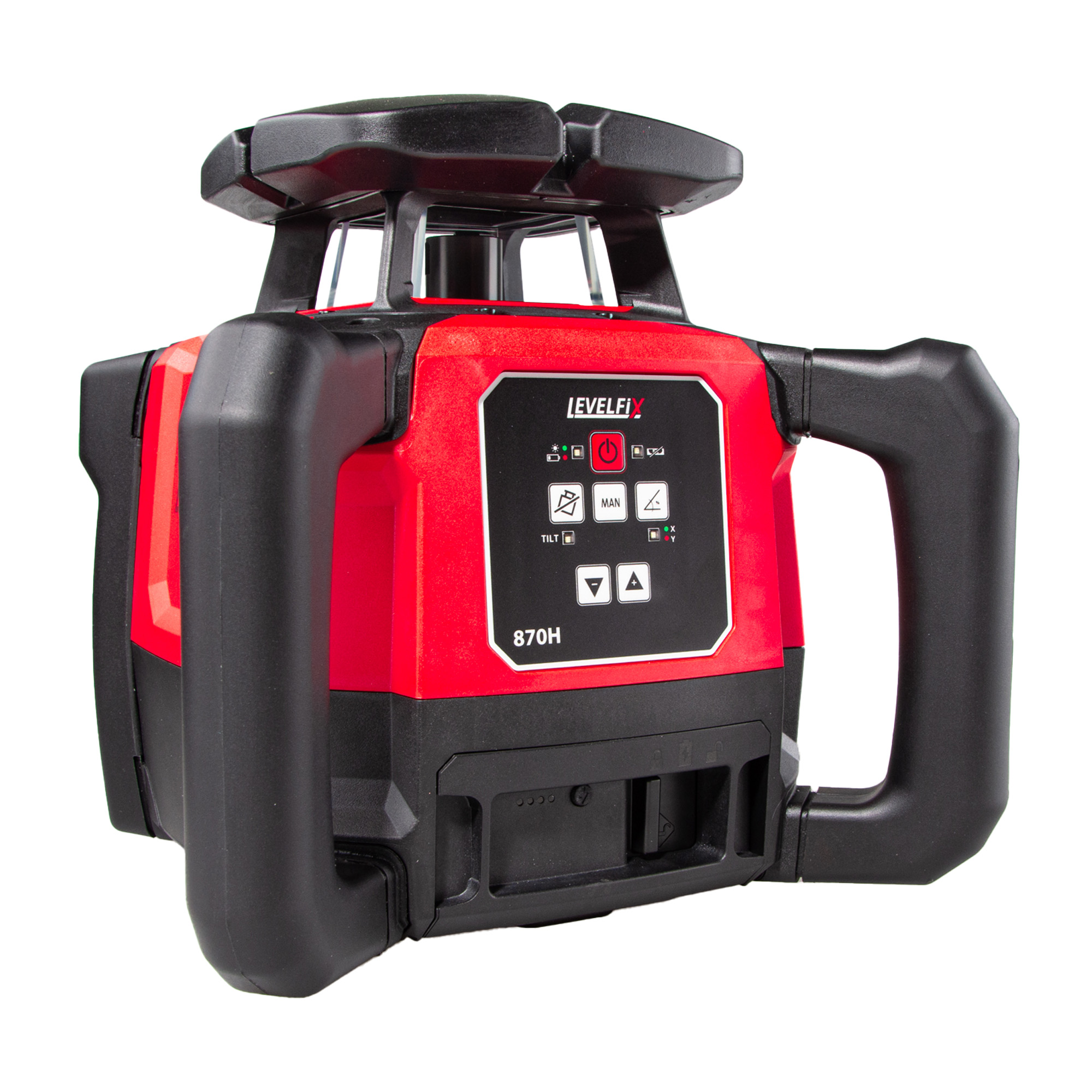

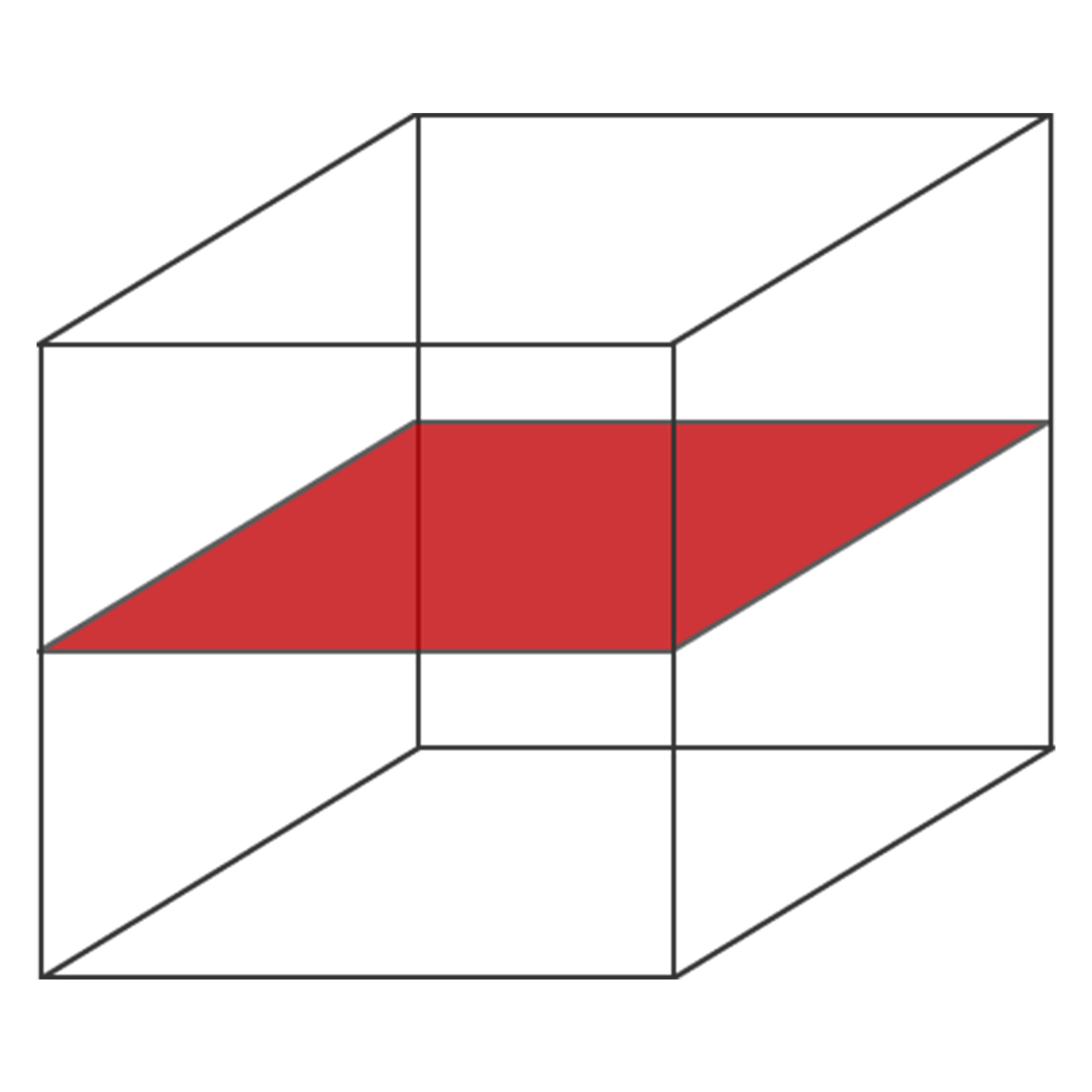

LEVELFIX 870H – Horizontal construction laser with red beam

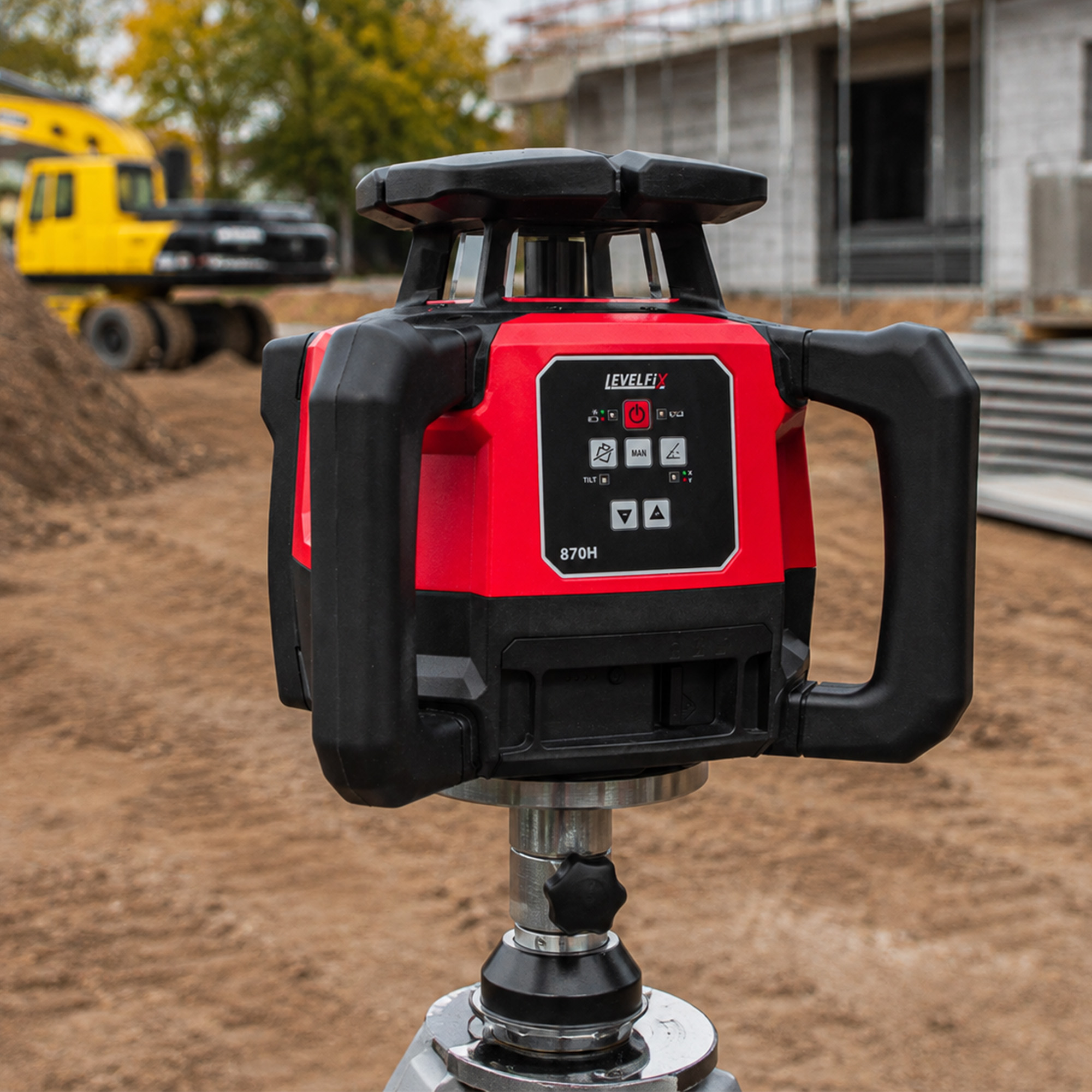

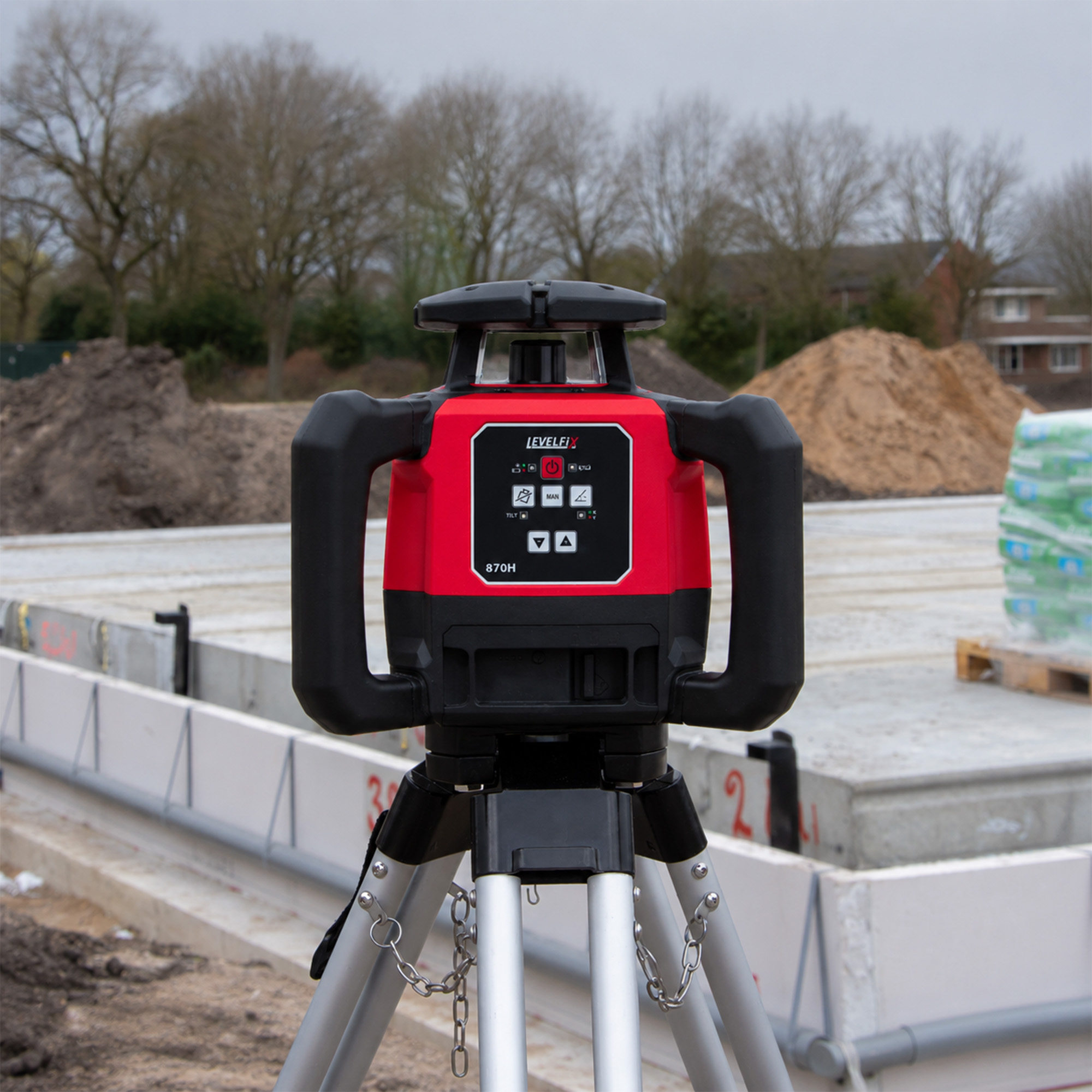

The standard for every construction site
The 870H is a robust horizontal construction laser that performs under the toughest conditions. The 870H features an extremely rugged housing and is IP67 rated, protecting it against all weather conditions. Its excellent specifications make the 870H a reliable partner for any project.

Reliability time and again
Thanks to the tilt function, the laser constantly monitors the height, ensuring you always work with the correct measurements. Does the height change due to movement? It locks automatically, so you never make a mistake. In addition to this function, the 870H has a slope function. This allows you to quickly and easily set a semi-automatic slope on both the x and y axes.

Digital receiver as standard
The LEVELFIX 870H comes with the DLD100GR digital receiver, giving it a range of up to 600 meters. This receiver is accurate, easy to use, moisture-resistant, and can take a beating. Additionally, this receiver displays the difference to the 0-line in millimeters.

Endless use
You can work with the 870H for up to 55 hours before the battery needs recharging. But even then, your work doesn’t have to stop. Thanks to the Charge&Work function, you can charge the laser while using it. The 870H is the ideal construction laser for the most demanding user and is a proud part of our LEVELFIX Construct range.

Remote operation
The 870H connects to the Connect app on a tablet or smartphone via LEVELFIX Connect. The app allows you to remotely toggle TILT mode, set the slope, disable parts of the laser projection using Beam-masking, and consult the manual. This saves walking back and forth and prevents unnecessary contact with the laser.

7-Year CONSTRUCT Warranty
LEVELFIX CONSTRUCT instruments feature high-quality components, resulting in high reliability, excellent specifications and an instrument you will enjoy for many years. On these instruments you will receive no less than 7 years warranty. You can rest assured; you can build on a LEVELFIX Construct instrument.

Category: Construction Lasers
